Relative Permeability Module
Purpose
The Relative Permeability module allows users to evaluate the fractional flow of oil and water from a reservoir.
Primary Output
The following curves are the primary interpretations made in this module.
| Curve Name | Description |
|---|---|
| FFW | Fractional flow of water |
| FFHC | Fractional flow of hydrocarbon |

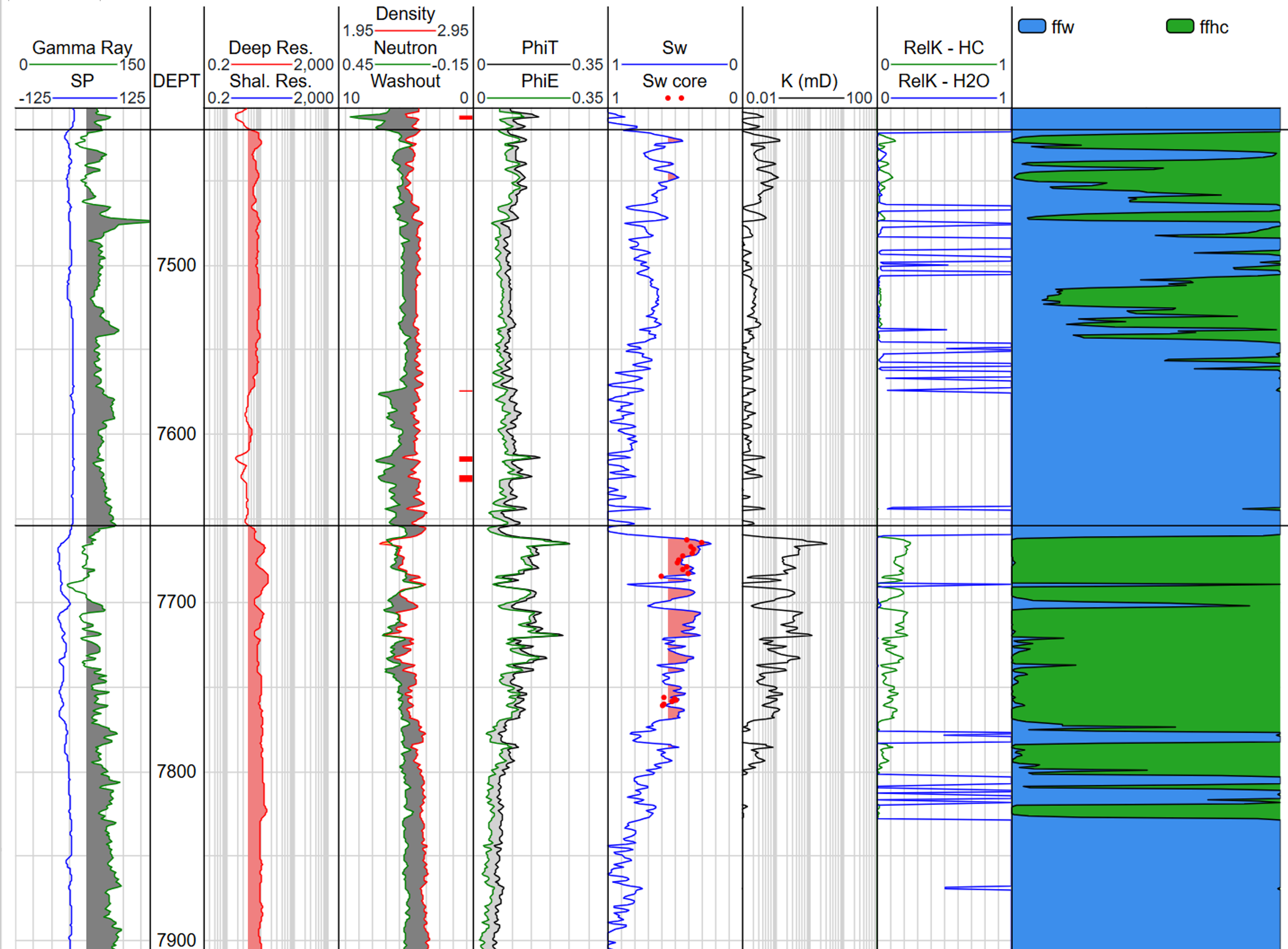

Screenshot showing the relative permeability module with fractional flow of water and hydrocarbon.Discussion
The relative permeability module allows users to calculate the fractional flow of oil and water from a reservoir based on either a Brooks-Corey or Power-law relationship.
This module requires an irreducible water saturation and residual hydrocarbon as inputs. The irreducible Sw can be pulled from the Saturation Height modeling module. The residual HC can either be a user value or can come from a flushed zone saturation.
